EV Charger Installation and Switchboard Upgrade in Brisbane

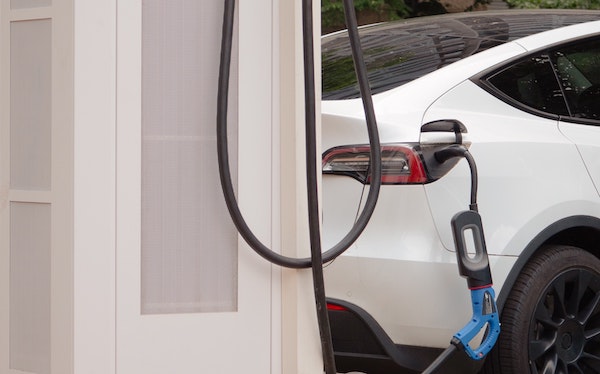

With a growing number of homeowners in Brisbane transitioning to electric vehicles, the installation of a home EV charger has become a standard practice, paralleling the setup of solar panels. However, before connecting your new charger, addressing a crucial concern is essential: is your switchboard sufficiently equipped to handle the increased electrical load?

At Precision Electrical & Air, we have expertly managed the installation of hundreds of EV chargers across Brisbane and its surrounding suburbs. In numerous residential properties, the switchboard often represents the first component in need of an upgrade to guarantee the safe, compliant, and efficient charging of your electric vehicle.

Why Dedicated Circuits Are Crucial for Your EV Charger Installation

A home EV charger operates distinctly from conventional household appliances such as kettles or toasters. Even average home chargers (spanning from 7kW to 22kW) consistently draw a substantial amount of current, often necessitating between 32 to 50 amps, and must connect to a dedicated circuit to ensure optimal performance and safety.

To align with Australian and Queensland regulations, your EV charger circuit must satisfy several essential criteria, including:

• A dedicated circuit explicitly reserved for the charger
• RCD (safety switch) protection as required by AS/NZS 3000:2018 Wiring Rules
• Effective load management to avert electrical overloads
• Ample circuit space and amp capacity to support the EV charger along with other household electrical loads

Merely connecting your EV charger to an existing power outlet or an outdated switchboard not only poses safety risks but is also non-compliant with Queensland electrical standards, which can lead to serious consequences.

How to Identify If Your Switchboard Needs an Upgrade

If your home is over 15 to 20 years old, it’s likely that your switchboard lacks the capacity to meet the demands of modern electrical systems. Our skilled electricians frequently observe:

• Old ceramic fuses or asbestos backing boards that pose significant safety concerns
• No safety switches (RCDs), endangering your home and family
• Overcrowded or undersized switchboards lacking spare circuits for future expansion
• Frequent circuit breaker tripping or flickering lights when high-load appliances are in operation
• Single-phase supply that struggles to support air conditioning, solar energy, and now EV charging

Any of these signs indicate that your switchboard may require a switchboard upgrade before the secure installation of your EV charger.

Essential Electrical Standards for Safe EV Charger Installation in Queensland

In Queensland, every EV charger installation must comply with these pivotal standards:

• AS/NZS 3000:2018 Wiring Rules (Section 7.3 – Electric Vehicle Charging Equipment)
• Electrical Safety Regulation 2013 (Qld) — all work must be performed by a licensed electrician to ensure safety and compliance
• Queensland Electrical Safety Office (ESO) requirements, which outline guidelines regarding safety switches and load balancing
• Acquisition of a Certificate of Testing and Safety Compliance upon completion of the installation

Hiring unlicensed individuals for installations or attempting DIY projects is illegal and may void warranties, exposing homeowners to serious fire hazards and liability risks.

What Are the Steps Involved in Upgrading Your Switchboard?

When you reach out to Precision Electrical & Air, here’s what you can anticipate during the switchboard upgrade process:

1. Comprehensive Switchboard and Supply Assessment – Our expert team will thoroughly examine your switchboard, cabling, and main power supply to assess their capacity for safely supporting EV charging.
2. Detailed Load Calculations – We will conduct calculations to determine the total demand across all major appliances, ensuring your home can efficiently accommodate the addition of new circuits.

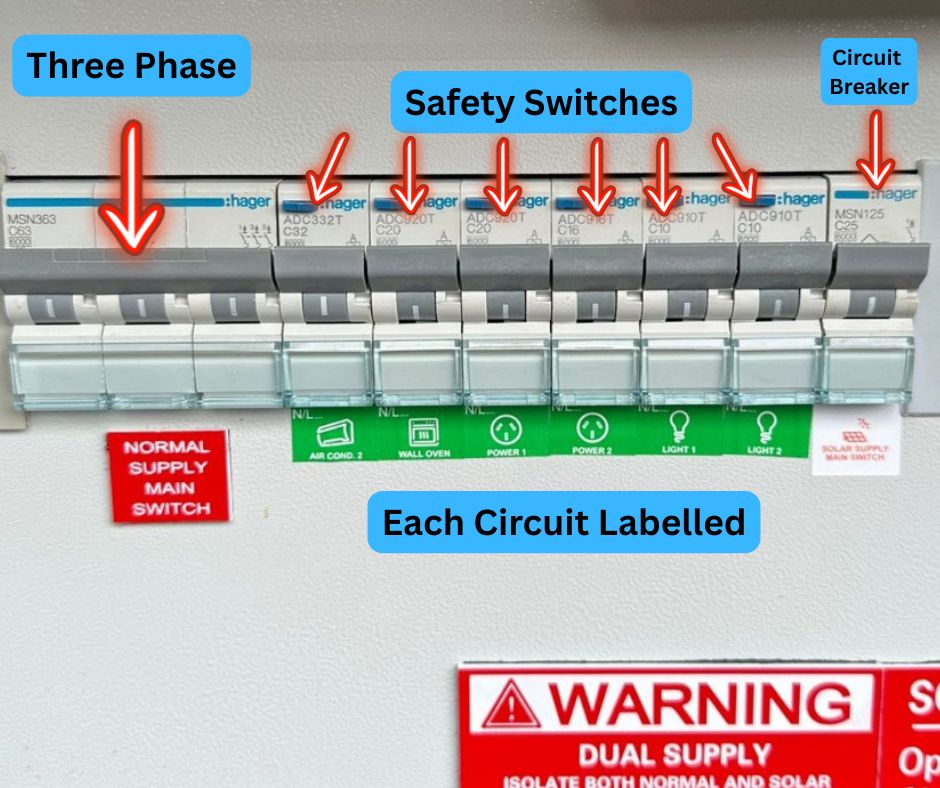

3. Upgrade Recommendations – If needed, we will install a new switchboard equipped with RCDs, circuit protection, and surge protection, allowing for future expansion capabilities.
4. Thorough Documentation & Compliance – All installations will be certified and documented in accordance with your electricity distributor's regulations.

Most switchboard upgrades can typically be completed within a single day, minimizing disruption to your daily life and household activities.

How Do Your Existing Solar or Battery Systems Affect EV Charger Installation?

If you already have a solar or battery system in place, that’s fantastic. However, it is essential to assess how your EV charger will work with these systems. Without proper load balancing, your charger might draw excessive power from the grid or interfere with your solar inverter.

We design systems that:

• Maximise charging times to enhance your solar energy production
• Coordinate the operations of solar, battery, and EV charging through effective load management solutions
• Prepare your home for future expansions, such as accommodating a second electric vehicle or increasing battery storage

When Should You Consider Upgrading to Three-Phase Power for Your EV Charger?

While most Brisbane homes can effectively operate a 7kW charger on single-phase power, upgrading to three-phase power can be advantageous in specific scenarios:

• If you desire faster charging speeds (up to 22kW) for your vehicle
• If you intend to operate two EV chargers or multiple high-demand appliances simultaneously
• If you currently have or plan to install a large solar system (6.6kW+)
• If you are upgrading your electrical system for enhanced long-term capacity and efficiency

Three-phase power provides smoother voltage delivery, quicker charging, and balanced energy usage, making it an ideal choice for future-proofing your home’s electrical system. For additional information, please visit our Three-Phase Installation Brisbane page.

Why Choose Precision Electrical & Air as Your Reliable EV Charging Experts in Brisbane?

Our dedicated team consists of licensed Queensland electricians who specialise in EV charger installations, switchboard upgrades, and three-phase power conversions. We take pride in our honesty and integrity; if your existing setup is safe and compliant, we will inform you rather than recommending unnecessary work.

We partner with all leading charger manufacturers, including Tesla, Zappi, Wallbox, and Ocular, ensuring your system operates efficiently and safely for years to come.

What Important Factors Should You Evaluate for Your EV Charger Installation?

If you are considering the installation of an EV charger at home in Brisbane, ensure that assessing your switchboard is your initial step. A quick evaluation can help determine whether it is safe, compliant, and capable of handling the additional load, or if an upgrade is necessary to enhance your system for future needs.

For further information, please visit our EV Charger Installation Brisbane page, or contact Precision Electrical & Air for a complimentary assessment.
